Plato Series LED Tri-proof Light
· Make sure that the supply voltage corresponds to the rated product voltage(200-240VAC).
· If the product is damaged, do not use it.

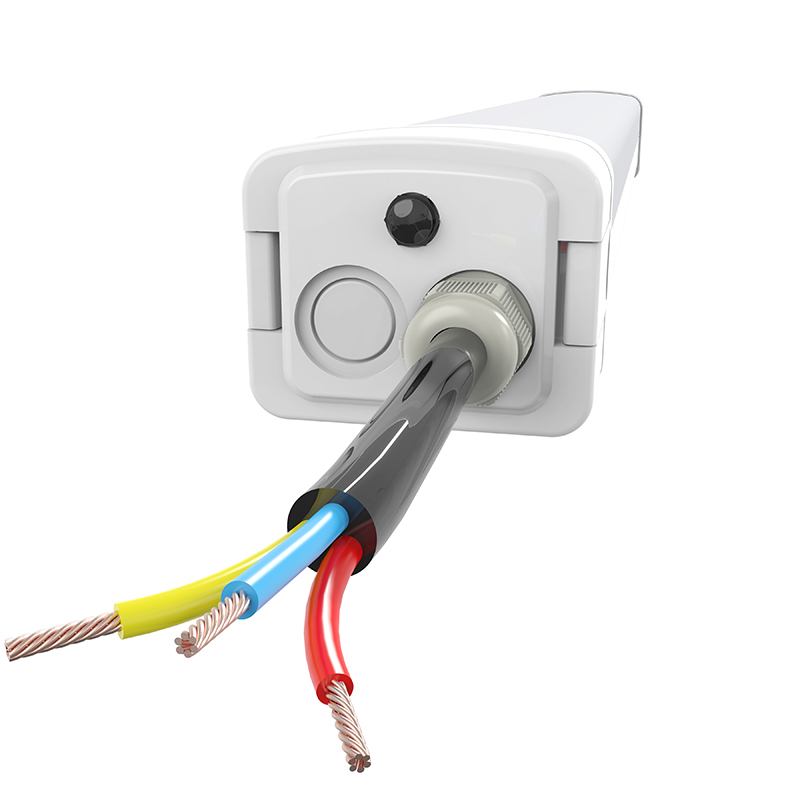

· All wiring connections should be capped with IEC approved wire connectors.

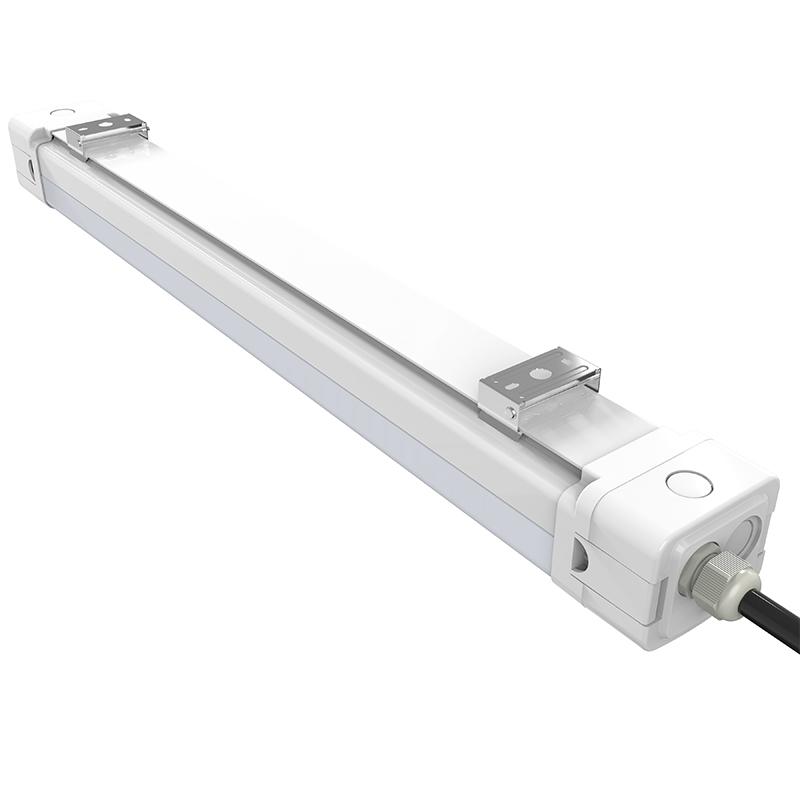

· For ceiling or suspended mount there are two stainless steel surface brackets included.
· This fixture is intended to be connected to a properly nstalled and grounded UL listed junction box with uitable strain relief means for power cord. The junction box is not included, should be purchased separately.
Widely used in all types of production line,parking lot,factory,freight yard shopping mall,and supermarket,it can replace traditional tri-proof lamp.
1.Identify installation location & check for any passing wiring/piping prior drilling and installing cables. Fix the mounting brackets / suspension kits on the ceiling at correct spacing as per dimensions.(Pic.A)
2.Position and fix base using the pre-fixed mounting brackets / suspension kits.
3-1.Individually power option.
3-2.Multiple(Loop in/out) power option.
4. Connect male/female DC connectors and fix the safety strap to the light body.
5. Check all connections are sound and properly insulated. Re-fit the light body to the base and secure all the clips.
※Luminous efficiency up to 140 lm/W
※Colour rendeing index Ra80
※Symmetrical light distribution
※LED rated life 50,000H (L80,B10)
※Replacement for fluorescent lamps
