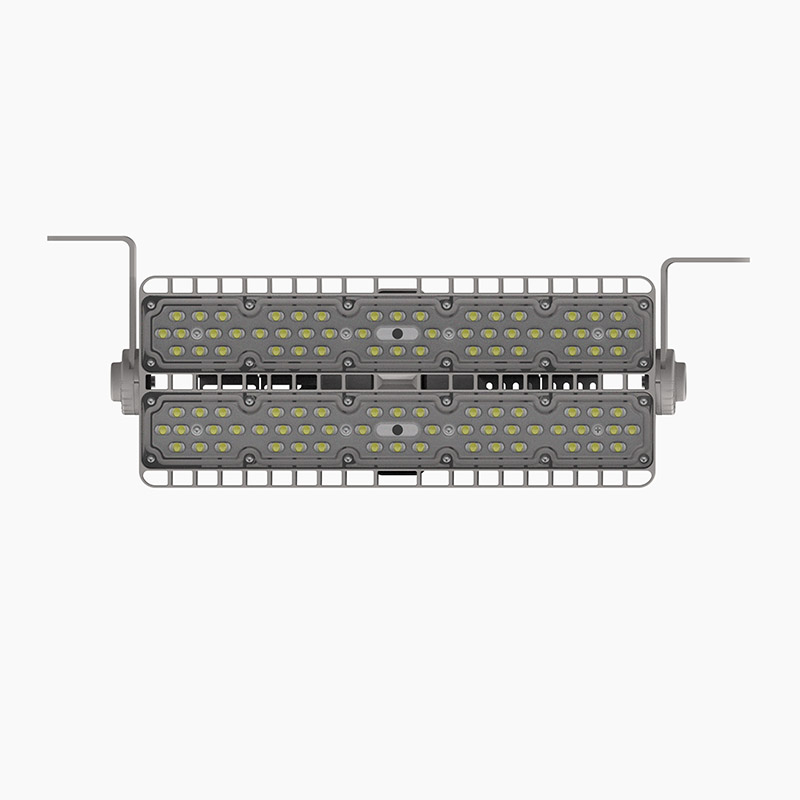

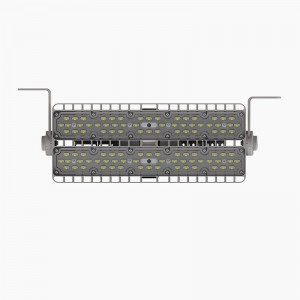

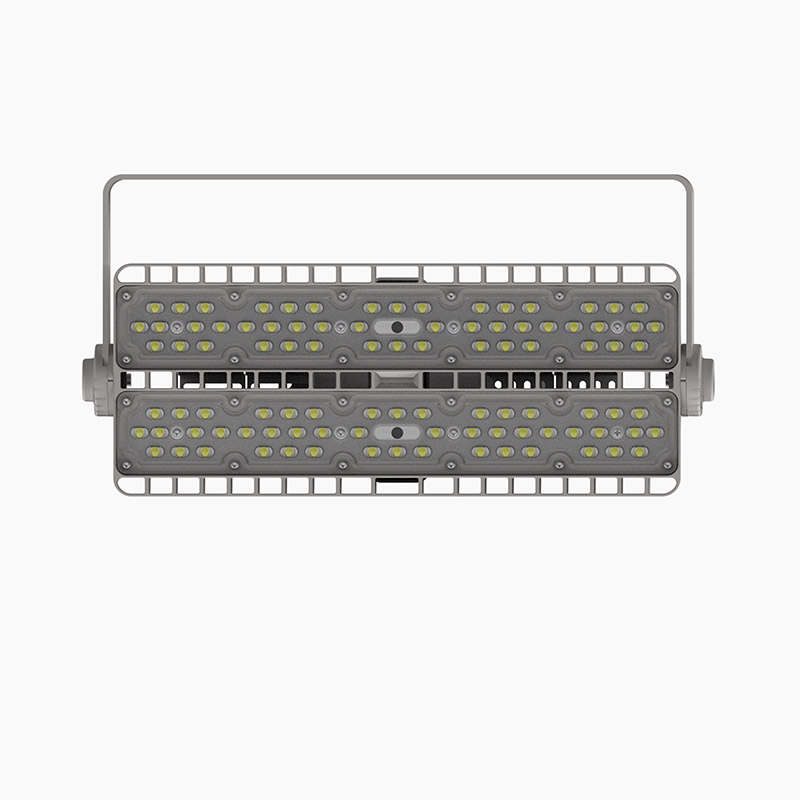

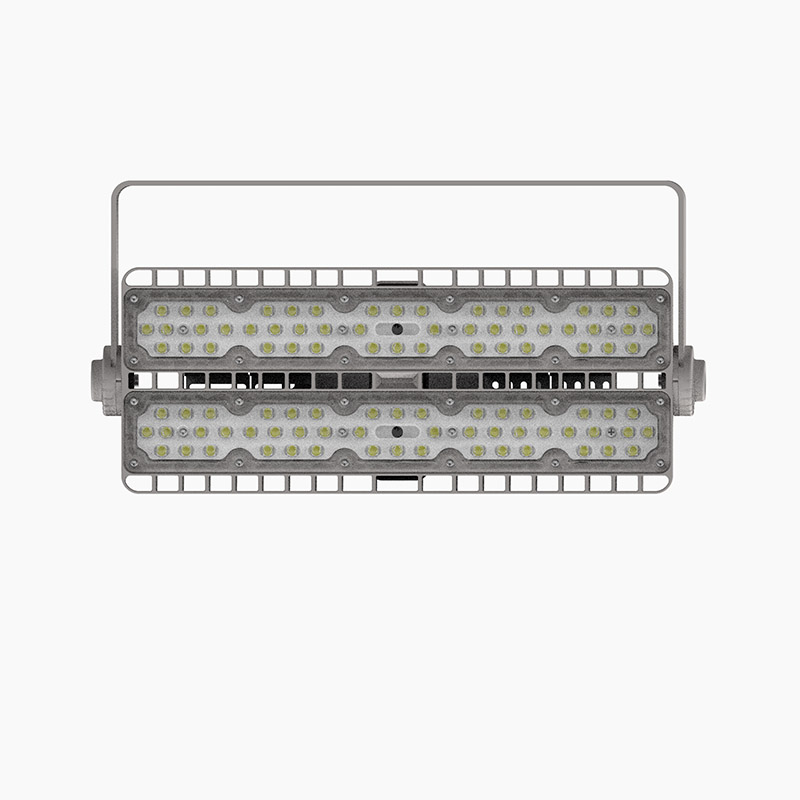

LED Tunnel Light (30W-240W)
A: Technical parameter
| ltem No. | TL-S3-50W | TL-S3-100W | TL-S3-150W | TL-S3-200W | |
| Input voltage | AC100V-277V 50/60HZ | ||||
| Dimension | L-type bracket version | 424*110*79mm | 424*139*81mm | 424*232*81mm | 424*260*81mm |
| Power range | 30W-50W | 70W-100W | 120-150W | 180-200W | |
| LED chip | Lumileds 2835/3535/3030/5050 | ||||
| LED Qty | 48-in-1 lens*1 | 96/48/48pcs | 192/96/96pcs | 288/144/144pcs | 384/192/192pcs |
| 22-in-1 lens*1 | 22pcs | 44pcs | 66pcs | 88pcs | |
| 22-in-1 lens*3 | 66/22pcs | 132/44pcs | 198/66pcs | 264/88pcs | |
| 22-in-1 lens*4 | 88/22pcs | 176/44pcs | 264/66pcs | 352/88pcs | |
| CCT | warm white | 2800-3500K | |||
| neutral white | 3800-4500K | ||||
| pure white | 5500-6500K | ||||
| Luminous flux | 3600-7500LM | 8400-15000LM | 14400-22500LM | 21600-30000LM | |
| Lighting efficiency | 120lm/W-150 |m/W | ||||
| Beam angle | 48-in-1 lens*1 | 25/30/60°/90°/80*140/T2M | |||
| 22-in-1 lens*1/3/4 | 12°/60/90°/80*150/T2M/T3M | ||||
| Net weight | 1.12KG | 1.84KG | 2.56KG | 3.28KG | |
| Color Rendering Index (CRI) | Ra>70 | ||||
| Power supply efficiency | >90% | ||||
| Power Factor (PF) | >0.9 | ||||
| Total Harmonic Distortion (THD) | ≤15% | ||||
| IP level | IP 66 | ||||
B: Mechanical Specication
|
Power supply |
MeanWell XLG(30W-200W) |
|
Housing processing |
integrated die-casting |
|
Material |
ADC12 Aluminum |
C: Environmetal parameter
| Operation temperature range |
-40°C~50°C |
|
Operation humidity range |
10%-90% |
| Storage temperature range |
-40°C~ 70°C |
| Storage humidity range |
10% -90% |
1.Fix the bracket on the wall by screws.
2.Adjust the lamp body to proper orientation.
3.Tighten the screws that connecting the bracket and the lamp body.
4.Connect the wires.Brown wire is live line, blue wire is null line,and yellow-green wire . is ground wire.
|
Item No. |
Carton size |
Qty/CTN |
N.W. |
G.W. |
|
TL-S3-30W |
434*133*100mm |
1 pcs |
1.12kg | 1.62kg |
|
TL-S3-60W |
434*133*100mm |
1 pcs |
1.15kg | 1.65kg |
|
TL-S3-80W |
434*140*100mm |
1 pcs |
1.84kg | 2.34kg |
| TL-S3-120W |
434*140*100mm |
1 pcs |
1.87kg | 2.37kg |
| TL-S3-150W |
434*245*100mm |
1 pcs |
2.56kg | 3.06kg |
| TL-S3-180W |
434*245*100mm |
1 pcs |
2.57kg | 3.07kg |
| TL-S3-200W |
434*270*100mm |
1 pcs |
3.28kg | 3.88kg |
| TL-S3-240W |
434*270*100mm |
1 pcs |
3.29kg | 3.89kg |
1.Please read the manual carefully before installation.
2.Please check everything carefully before use,if any abnormalities occured during use,please contact us immediately.
3.It is a normal phenomenon that the surface temperature of the lamp get higher during use.
4.Please do not disassemble the lamp without permission,or it will be deemed to have waived the warranty service.
5.For products with special function,the corresponding sections in this manual is for reference only.
Glitter offers 5-year warranty since the purchase date for all above items.
Warranty terms
1.Under warranty terms,if any products failed under normal usage within warranty period,GLITTER will provide free maintenance service based on the proof-documents and invoice(copy)of the failed products.
2.GLITTER will not offer maintenance service under following conditions even within warranty.
a.Failure or damage due to force majeure.
b.Failure or damage due to transport or abnorma lunload.
c.Failure or damage due to incorrect usage or failed to follow the manual.
d.Failure or damage due to demolition,repair or alteration without authorization of the manufacturer.
3.Please deliver the failure product by original packing for maintenance service GLITTER will not be responsible for any failure or damage by transportation if the failed items are packed by non-original packing or improper packing.
4.GLITTER reserves the right for final explanation of aforesaid terms.
