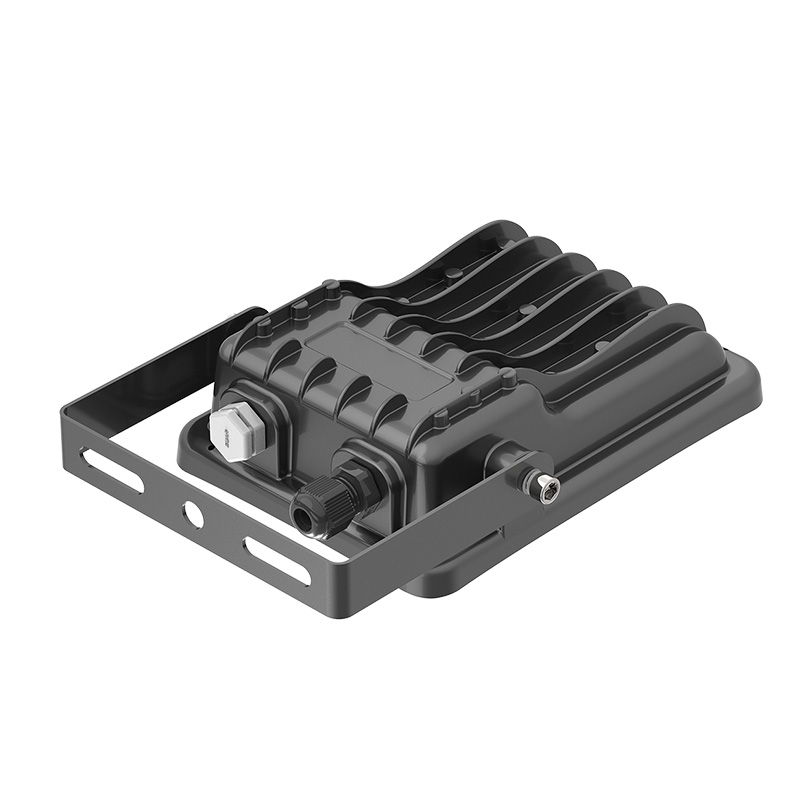

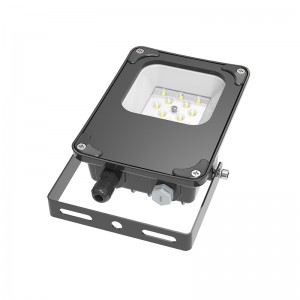

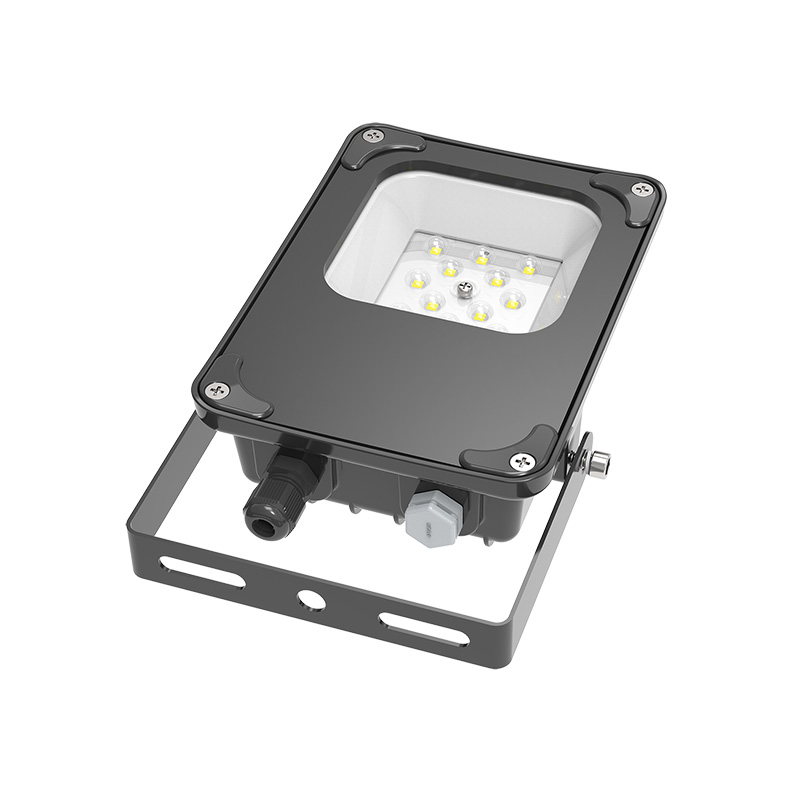

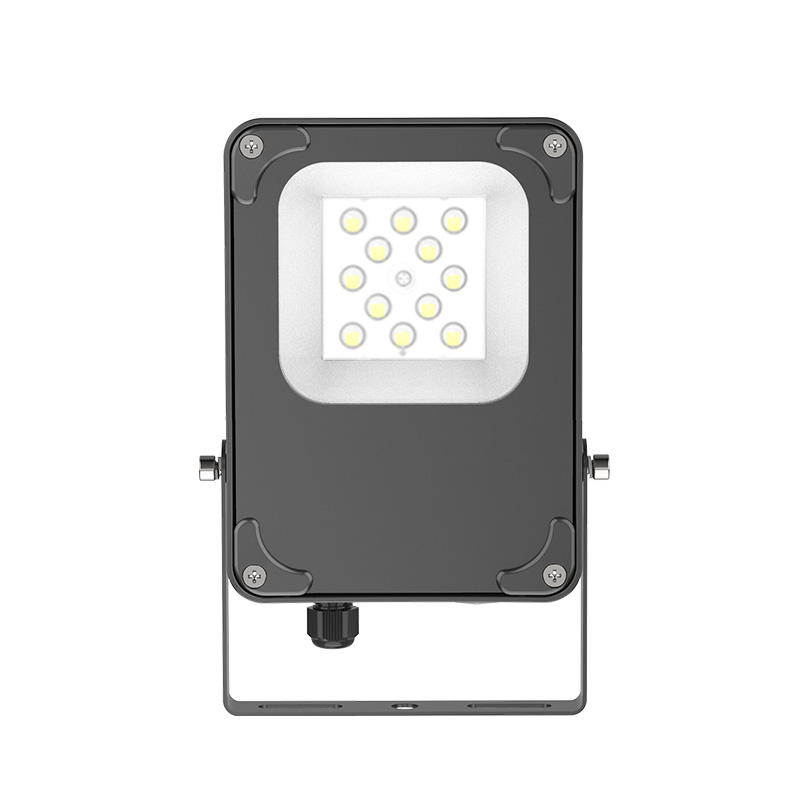

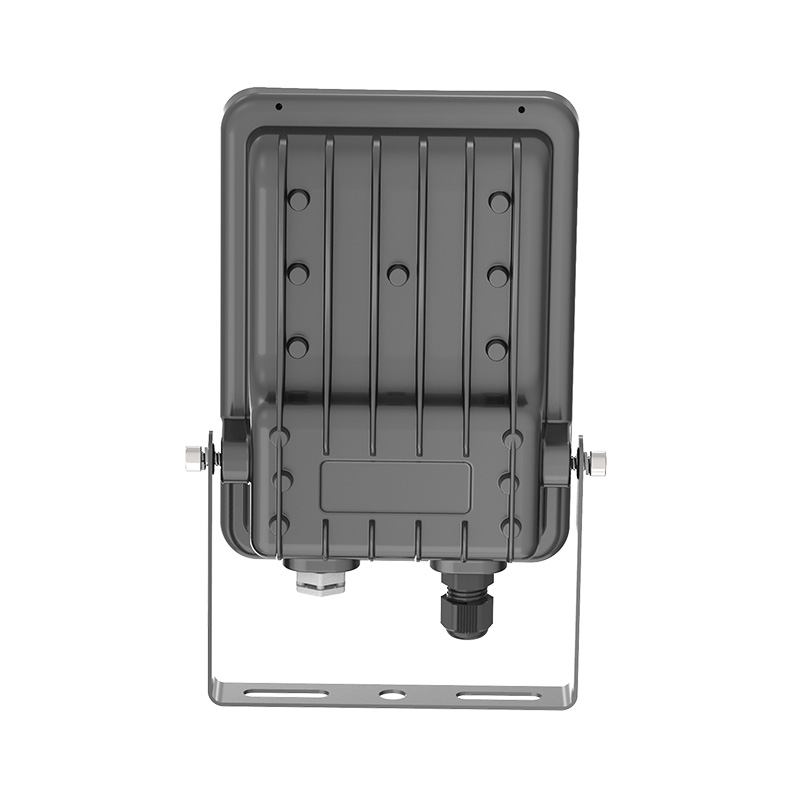

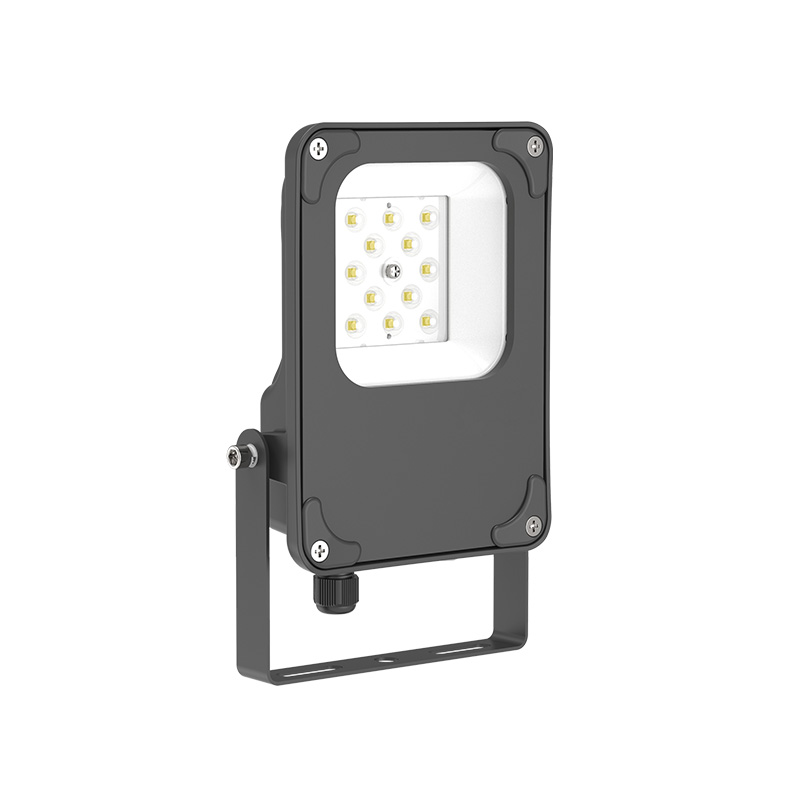

Ares Series LED Flood Light
> Ares Patented private mold, integrated die-cast aluminum shell, stylish and simpleappearance.
> High luminous efficiency up to 160lm/w
> This series of products has 6 specifications, power: 30-320W
> Professional anti-glare full cut-off light distribution: luminous Angle 15°/30°/60°/90°/120° T2M/T3M/50*120 polarized light /30*90 polarized light is optional.
> Large heat dissipation area, good heat dissipation effect, long service life of lamps. High temperature tempered glass, surface paint process, excellent corrosion resistance.
The protection level reaches IP67.
>0/1-10V dimming, time control, light sensing, iot control and other functions are optional.
10W Mounting bracket
20W-30W Mounting bracket
50W Mounting bracket
80W-100W Mounting bracket
120W-250W Mounting bracket
300W-350W Mounting bracket
● Billboard
● Road
● Tunnel
● Bridge and culvert Square
● Building
| Item No. | FDL-S3-10W | FDL-S3-20W | FDL-S3-30W | FDL-S3-50W | FDL-S3-80W | FDL-S3-100W | |
| LampSize | 188*123*47mm | 242*169*51mm | 242*169*51mm | 283*220*52mm | 369*278*52mm | 369*278*52mm | |
| Voltage | AC100V-240V 50/60HZ | ||||||
| Power | 10W | 20W | 30W | 50W | 80W | 100W | |
| LED Type | Lumileds 3030 | ||||||
| LED Quantity | 12pcs | 24pcs | 32pcs | 48pcs | 72pcs | 96pcs | |
| Luminous Flux | Lumileds 3030 | 1200LM±5% | 2400LM±5% | 3600LM±5% | 6000LM±5% | 9600LM±5% | 12000LM±5% |
| Color Temperature(CCT) | 3000k/4000k/5000k/6500k | ||||||
| Beam Angle | 30/60/90/120° /T2M/T3M (12-in-one lens) |
30/60°/90/120° /T2M/T3M (12-in-one lens) |
30/60°/90/120° /T2M/T3M (16-in-one lens) |
30/60°/90/120° /T2M/T3M (16-in-one lens) |
30/60°/90/120° /T2M/T3M (12-in-one lens) |
30/60°/90/120° /T2M/T3M (12-in-one lens) |
|
| Color Rendering Index (CRI) | Ra>80 | ||||||
| Power Supply Efficiency | >88% | ||||||
| LED Luminous Efficiency | 120lm/w | ||||||
| Power Factor (PF) | >0.9 | ||||||
| Total Harmonic Distortion (THD) | ≤15% | ||||||
| IP Rank | IP 66 | ||||||
| Net Weight | 0.5kg | 0.98kg | 0.98kg | 1.5kg | 2.6kg | 2.6kg | |
| Certicate | CE, CB, SAA | ||||||
| Item No. | FDL-S3-120W | FDL-S3-150W | FDL-S3-180W | FDL-S3-200W | FDL-S3-250W | FDL-S3-300W | FDL-S3-350W | |
| LampSize | 394*392*57mm | 394*392*57mm | 445*392*57mm | 445*392*57mm | 497*392*59mm | 524*545*65mm | 524*545*65mm | |
| Voltage | AC100V-240V 50/60HZ | |||||||
| Power | 120W | 150W | 180W | 200w | 250w | 300W | 350w | |
| LED Type | Lumileds 3030 | |||||||
| LED Quantity | 120pcs | 144pcs | 180pcs | 216pcs | 240pcs | 384pcs | 384pcs | |
| Luminous Flux | Lumileds 3030 | 14400LM±5% | 18000LM±5% | 21600LM±5% | 24000LM±5% | 30000LM±5% | 36000LM±5% | 42000LM±5% |
| Color Temperature(CCT) | 3000K/4000k/5000k/6500k | |||||||
| Beam Angle | 30°/60°/90°/120° /T2M/T3M (12-in-one lens) |
30°/60°/90°/120° /T2M/T3M (12-in-one lens) |
30°/60°/90°/120° /T2M/T3M (12-in-one lens) |
30°/60°/90°/120° /T2M/T3M (12-in-one lens) |
30°/60°/90°/120° /T2M/T3M (12-in-one lens) |
30°/60°/90°/120° /T2M/T3M (12-in-one lens) |
30°/60°/90°/120° /T2M/T3M (12-in-one lens) |
|
| Color Rendering Index (CRI) | Ra>80 | |||||||
| Power Supply Efficiency | >88% | |||||||
| LED Luminous Efficiency | 120lm/w | |||||||
| Power Factor (PF) | >0.9 | |||||||
| Total Harmonic Distortion (THD | ≤15% | |||||||
| IP Rank | IP 66 | |||||||
| Net Weight | 4.0kg | 4.0kg | 4.7kg | 4.7kg | 5.7kg | 8.5kg | 8.5kg | |
| Certicate | CE,CB,SAA | |||||||
- Input Voltage : 100-277VAC
- Driver Type : CE SAA Approved Flicker-free
- Luminous Efficacy :130-160lm/w
- Colour Rendering Index : > 80Ra
- LED Type : LM80 SMD LED
- Operating : Temperature:-30°C up to 50°C
- Color Temperature : 3000K/4000K/5000K/5700K
- Material : Die-cast Aluminum body & Polycarbonate Diffuser/Toughened glass
- Ingress Protection : IP66
- Impact Rating : IK08
- Rated Life : 50,000 hours
- Warranty : 5 years
1.Fix the bracket on the wall by screws
2.Adjust the lamp body to proper orientation
3.Fix the srews that connecting the bracket and the lamp body.
4.Connect the wires.Brown wire is L,blue wire
is N,and yellow-green wire is G.
1.Please read the manual carefully before installation.
2.Please check everything carefully before use,if any abnormalities occured during use,please contact us immediately.
3 . It is a normal phenomenon that the surface temperature of the lamp get higher during use .
4.Please do not disassemble the lamp without permission,or it will be deemed to have waived the warranty service.
5 .For products with special function,the corresponding sections in this manual is for reference only .
Glitter offers 5-year warranty since the purchase date for all above items.
Warranty terms
1 .Under warranty terms,if any products failed under normal usage within
warranty period,GLITTER will provide free maintenance service based on
the proof-documents and invoice(copy)of the failed products .
2 .GLITTER will not offer maintenance service under following conditions even within warranty .
a . Failure or damage due to force majeure .
b . Failure or damage due to transport or abnorma lunload .
c . Failure or damage due to incorrect usage or failed to follow the manual .
d .Failure or damage due to demolition,repair or alteration without authorization of the manufacturer.
3 .Please deliver the failure product by original packing for maintenance service
GLITTER will not be responsible for any failure or damage by transportation if
the failed items are packed by non-original packing or improper packing .
4 .GLITTER reserves the right for fi nal explanation of aforesaid terms .
